title: Ouroboros Flash Reader
author: Patrick Schönberger
date: 16.07.2025
transition: none
revealjs-url: https://cdn.jsdelivr.net/npm/reveal.js@5.2.1
slideNumber: true
navigationMode: linear
Introduction
- Part of Project FIENDISH
- Automatically extracts files from ESP-based Shelly smart home devices
- Can run on a Raspberry Pi or a micro controller
::: notes
- Forensische Extraktion von IoT-Daten im Smart-Home
- Also supports Linux but no GPIO
- Right now supports ESPs but any MCU with enough memory could theoretically be used
:::
##
The Problem
How to access data on Shelly devices?
##
- Extract the flash memory and read the data
- Do it read-only and document the process
::: notes
- make the evidence usable in court
- include timestamps, hash values of extracted data and mac addresses of devices
:::
##

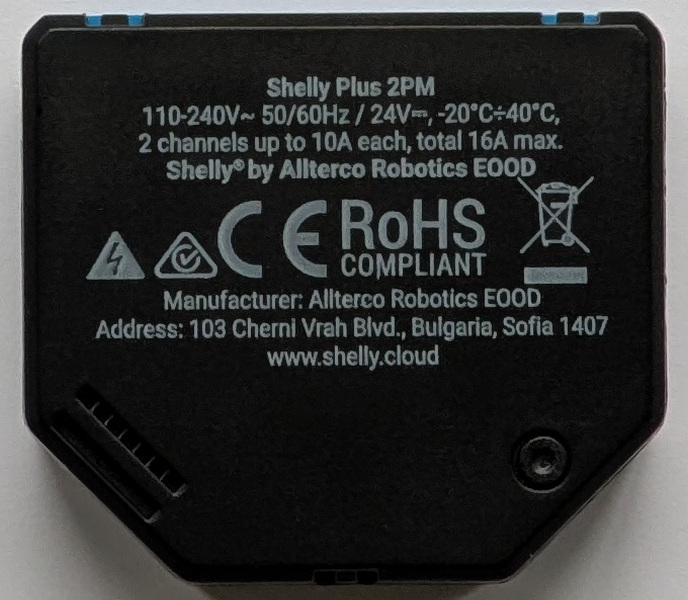

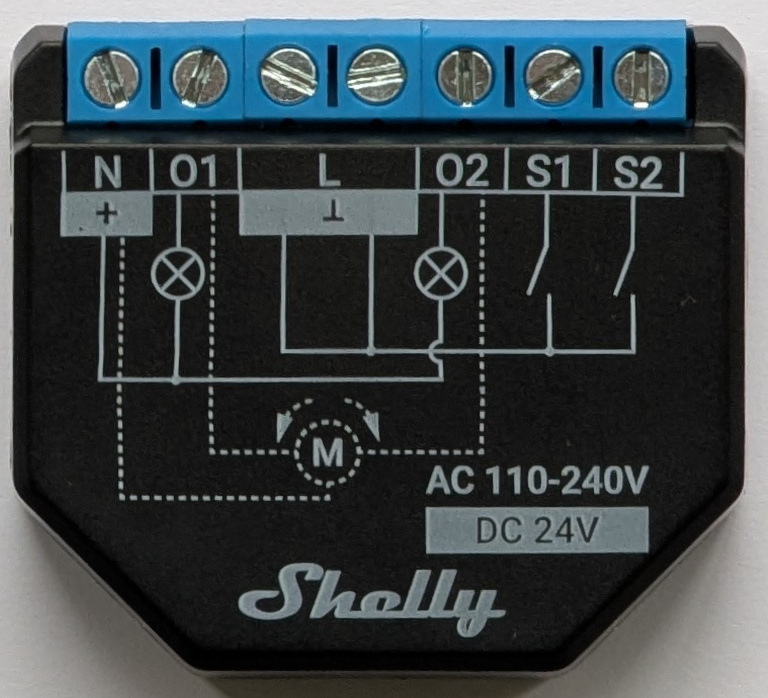

- Most Shelly devices are based on ESP micro controllers
- Existing solutions (esptool, mos) can modify memory and are not fully automated
- They are very complex, and thus hard to modify
- How about a custom tool?
::: notes
- esptool by espressif
- mos my cesanta/mongoose os
- run mongoose os
:::
Talking to the ESP
- What is the bare minimum needed to talk to an ESP?
- Two modes: boot and run

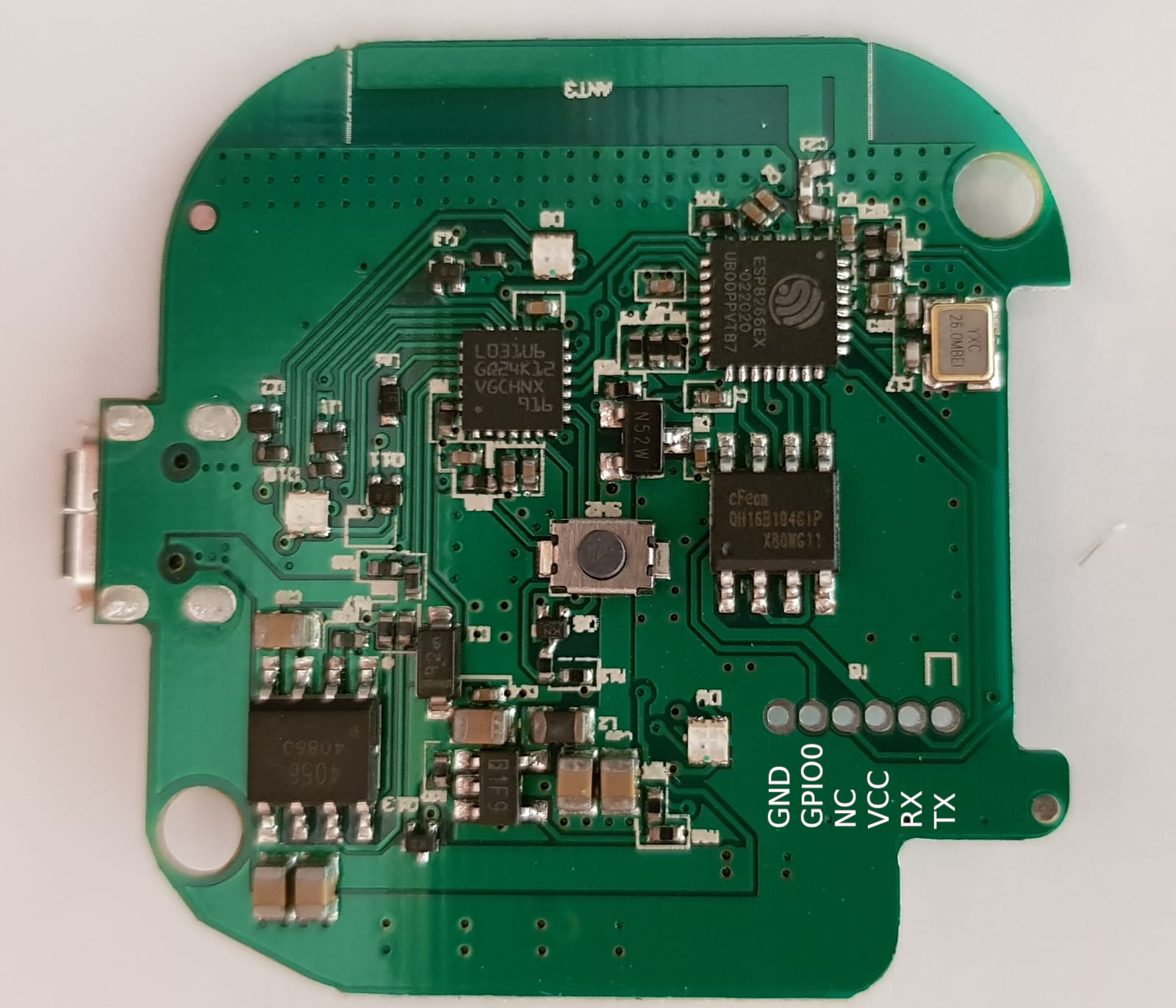

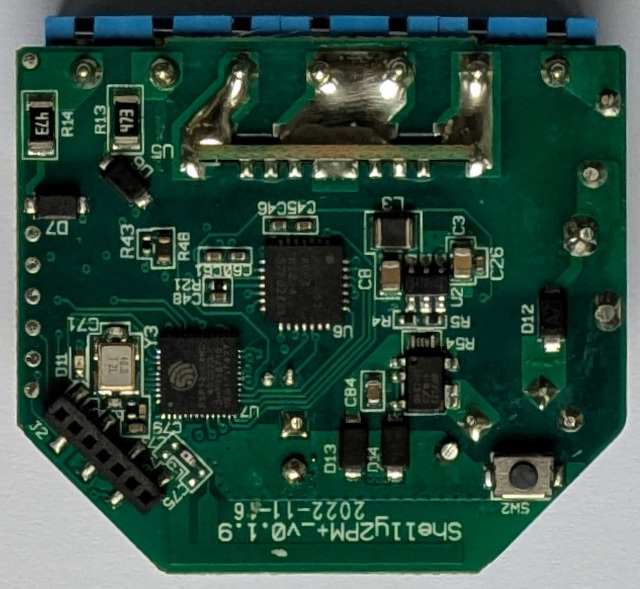

- Serial pins are exposed on some Shelly devices and accessible on others
- In boot mode they can be used to communicate using a custom protocol
::: notes
- So we need a serial connection and the ability to enter boot mode
:::
##
::: notes
- connect to pins for rx/tx and gpio0/rst
:::
##
##
##

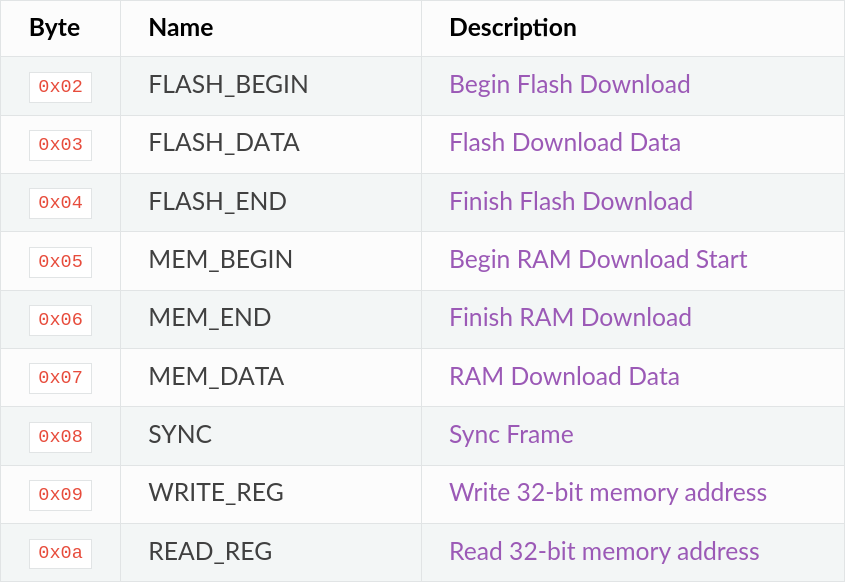

- What can we do with the protocol?
- Synchronize
- Write RAM, flash and registers
- Configure memory etc.
- On the ESP32 it can read flash, but not on the ESP8266, ESP32C3 or ESP32C6
::: notes
- protocol provided by bootloader in rom
:::
##
https://docs.espressif.com/projects/esptool/en/latest/esp32/advanced-topics/serial-protocol.html
::: notes
- How do other tools read flash?
:::
Reading Flash Memory
- We cannot directly read flash, but we can write RAM
- Write a program, load it into RAM and run it on the ESP
- This program is called flash loader or flasher stub
- Esptool uses two versions:
- Legacy C version
- New Rust version
::: notes
- flash loader speaks the same protocol as the boot loader
- it knows more commands
:::
##
```txt
$ cloc esp-flasher-stub/
Language files blank comment code
Rust 12 327 78 1863
Logos 14 32 0 249
YAML 3 34 12 214
Markdown 1 34 0 89
TOML 4 8 2 61
SUM: 34 435 92 2476
```
##
```txt
$ cloc esp-hal
Language files blank comment code
Rust 492 18739 26120 115809
Linker Script 51 499 1404 11315
Markdown 66 2014 12 5262
TOML 43 505 412 4481
Logos 44 229 15 1105
YAML 13 151 67 1054
Jinja Template 3 52 0 255
JSON 2 0 0 48
CSV 3 0 0 21
SVG 1 0 0 4
SUM: 718 22189 28030 139354
```
##
```txt
$ cloc esptool-legacy-flasher-stub/
Language files blank comment code
Linker Script 32 787 1188 18751
C 6 1284 636 7689
C/C++ Header 8 463 557 1687
make 1 36 33 130
YAML 4 19 0 114
Python 2 25 21 80
Markdown 3 58 0 76
Bourne Shell 2 9 8 23
TOML 1 1 0 20
Jinja Template 1 4 2 14
SUM: 60 2686 2445 28584
```
::: notes
- we will get back to this later when we take a closer look at the flash loader
:::
##
- C version is deprecated but it is much simpler and supports ESP8266
- Customize this version by removing write and erase commands
- Technically there is write access until the flash loader is activated
- The extraction tool is small and contains no write or erase commands
::: notes
- this is as sure as we can be given that the rom includes write/erase cmds
- a small tool such as this is easier to verify compared to a huge python project
:::

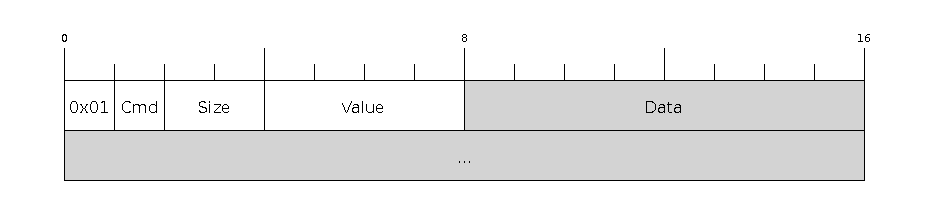

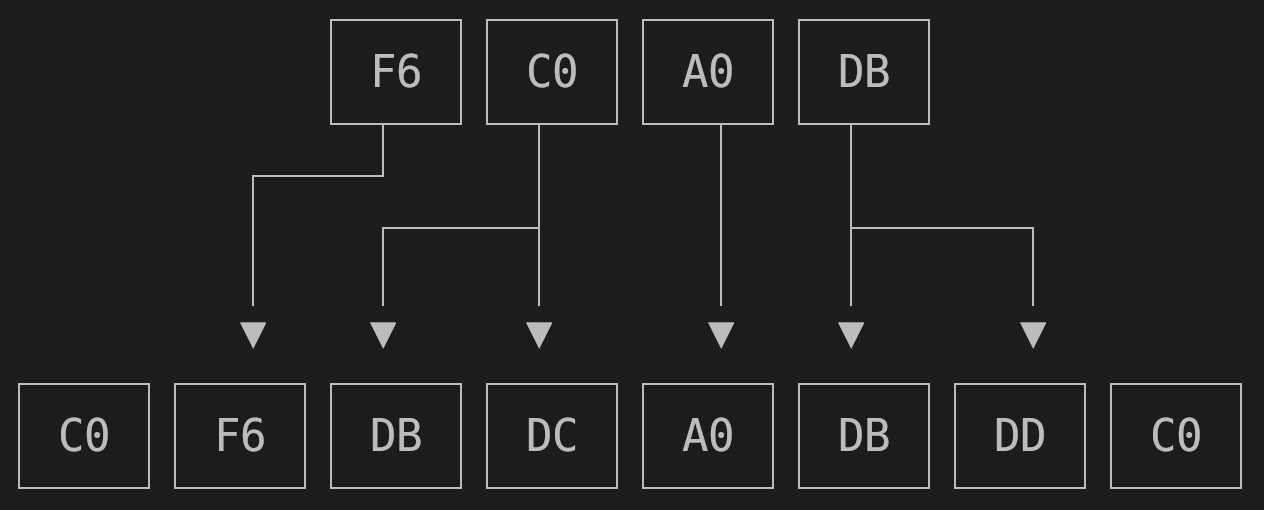

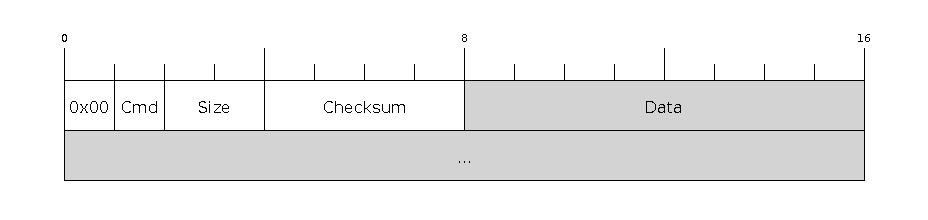

Serial Protocol
- Bytes are grouped using SLIP frames
- Host sends requests containing commands
- Target sends a matching reply
::: notes
- SLIP = Serial Line IP
- Exceptions:
- after loading flash loader it sends a slip frame on its own
- after sync request 8 replies are sent
- when reading flash using 0xd2 replies are not slip/request frames
:::
##
##
https://docs.espressif.com/projects/esptool/en/latest/esp32/advanced-topics/serial-protocol.html
Steps to Read Flash
- Sync
- Identify Chip
- (Read MAC)
- (Change baud rate)
- Upload Stub
- Read Flash
::: notes
- Starting from boot mode
- sync always at 115200 but esp detects other baud rates from known payload
- mac for logging/verification purposes
- baud rate for speed
:::
Modifying the Flash Loader
- Consists mostly of six C files:
txt
miniz.c // compression
slip.c // slip
stub_commands.c // handle commands (modify)
stub_flasher.c // main program
stub_io.c // serial communication
stub_write_flash.c // write flash (remove)
::: notes
- plus some headers and linker scripts
- containing where the sections go and where standard functions are in memory
:::
Uploading the Flash Loader
- Compile using specific toolchains
- Extract text and data sections from resulting ELF file
- Generate header file that is compiled with the extraction tool
- This includes section's sizes, addresses and the entry point
- Upload the corresponding loader after identifying the chip
::: notes
- toolchains are downloaded automatically from the Makefile
- proprietary forks of gcc and clang, only available as binary downloads
:::
##
```c
const unsigned char *elf_esp32_text_buffer =
(unsigned char[]){0x08,0x00,0xf4,...};
const unsigned long elf_esp32_text_size = 2100;
const unsigned long elf_esp32_text_addr = 1074520064;
const unsigned char *elf_esp32_data_buffer =
(unsigned char[]){0x9b,0xe6,0x0b,...};
const unsigned long elf_esp32_data_size = 60;
const unsigned long elf_esp32_data_addr = 1073561756;
const unsigned long elf_esp32_entry = 1074521000;
```
Different ESP Versions
- ESP32-C3 and later are identified using
GET_SECURITY_INFO command
- Earlier versions have a register with a magic value
- Try security info first and reset on failure
- Different registers containing MAC address
::: notes
- sec info first bc it fails with unknown command
- read register is a known command
- reset -> bootmode -> sync again
- on ESP8266 mac has to be calculated
- esp8266 has no data section when compiling flash loader
:::
Boot Mode
- GPIO0 low at start
- Wire pins to RST and GPIO0
- Pull both low
- Then pull RST high first and GPIO0 after
- Supported when using Raspberry Pi or ESP as host
::: notes
- default high for rst and gpio0
- rst = en
- For development also possible via USB on linux hosts
:::
Summary
- Connect to serial and set to boot mode
- Use serial protocol to identify the chip
- Upload modified flash loader
- Extract
::: notes
what is left:
- how to extract files
- what is on the files?
:::
Extracting File Systems
- SPIFFS/Littlefs
- Gen 1 devices have known layout
- On newer devices file system is found using metadata
- Files can be extracted using specialized tools
::: notes
- find filesystems in extracted data blobs
- tooling dependant on device version
- spiffs for 8266 littlefs for 32
- spiffs depends on the exact configuration used by mongoose os
:::
Shelly Plus 1 File System
txt
api_math.js
ca.pem // signing CA
conf0.json // empty configuration
conf3.json // initial configuration
conf9.json // current configuration
index.html.gz // web frontend
init.js
rpc_acl_auth.json // list of rpc endpoints
rpc_acl_no_auth.json
shelly_cloud.pem // Shelly Cloud certificate
shelly_plugin_api.js
storage.json // user data
tzinfo
updater.dat
conf9.json
txt
{
"wifi": {
"sta": {
"enable": true,
"ssid": "SSID",
"pass": "PASSWORD"
"last_bssid": "aa:17:5d:15:ae:03",
},
},
"shelly": {
"cloud": {
"enable": true,
"server": "192.168.112.231:6022/jrpc",
"token": "eyJhbGciOiJIUzI1NiIsInR..."
},
},
...
}
::: notes
- plain text wifi credentials
- cloud server (mitm)
- jwt which links the esp to a shelly cloud account
:::
shelly_cloud.pem
txt
Subject: O = Allterco
Not Before: Aug 4 12:03:41 2020 GMT
Not After : Aug 2 12:03:41 2030 GMT
-----BEGIN CERTIFICATE-----
MIICrTCCAZUCFCuIEEAQJOFLZuEtr/CWkvxi9YPAMA0GCSqGSIb3DQEBCwUAMBMx
ETAPBgNVBAoMCEFsbHRlcmNvMB4XDTIwMDgwNDEyMDM0MVoXDTMwMDgwMjEyMDM0
MVowEzERMA8GA1UECgwIQWxsdGVyY28wggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAw
ggEKAoIBAQDHGDBDHpPUbtC9QAAjX3bi487AVY5JgYB2gyp6R9cjdsNGMbYnWdxn
BmsIUKJPg7B5NcQObiMe6djUvwo0c2Xl9L+P9LOskP2WNDdpquX3XJu580hXHHVB
mwOgJ0fi+5U9mOFHhc1gYGLmhO9oqsE80SgpmsPQHloMIqmcaolLzgC9PWGu8nSD
ToJq+dXyNFHzLVyBEugHQpeIR8Fq0do4dtlsfTWvv9U+fpGPegjdkPenSxGrOVwd
syFzNahxQGKmpZE/1fsq5QSh9+ZgwpdDChVNpkj9TBC1ApDTUasNco/6Meb/0Xur
pxpWPNfkIpZ7ebtGHVd/ZkGTPUnL7FXHAgMBAAEwDQYJKoZIhvcNAQELBQADggEB
ADwbvD7Mf7SOinV8JkOue8D/tvp+OiYTYLHYppzCLcBK3D1kQ7aqla2T8ebEFbLh
hpau7MxJcizVWZs4vJvFYxEwBTQldobhmG5lHnoKQcOSxis1kWr5xdKhji/QYo6T
wS/cird9hAcuc+RmLCMdpEDyia/vX+vvvRdyKsmB7A6Vkdu8s2B2jlhQNkitYzvq
UDKogJrWe6fQUTpTThMyGbqhp9cQ64M4DJG1cwSBZ/hiUAMKO/y5WVNWFbXIb/Om
xwkXgof2RXN1AjjqMcBh3GNVK4ZV5XM9WCocZjOCi2yZxaxaRWyuGR7EqAQZ+wdr
P5XrzYspeVl1WtBzwGFssPc=
-----END CERTIFICATE-----
::: notes
certificate verifying shelly cloud server
:::
Thank You
